Support Bar for Small Scissor Lift
Support Bar for Small Scissor Lift
Support Bar for Small Scissor Lift
Support Bar for Small Scissor Lift
Support Bar for Small Scissor Lift
Support Bar for Small Scissor Lift
Support Bar for Small Scissor Lift
Support Bar for Small Scissor Lift

Support Bar for Small Scissor Lift

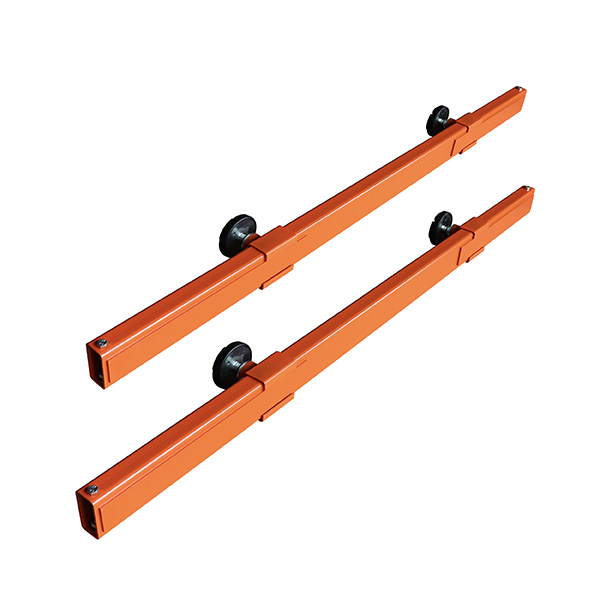

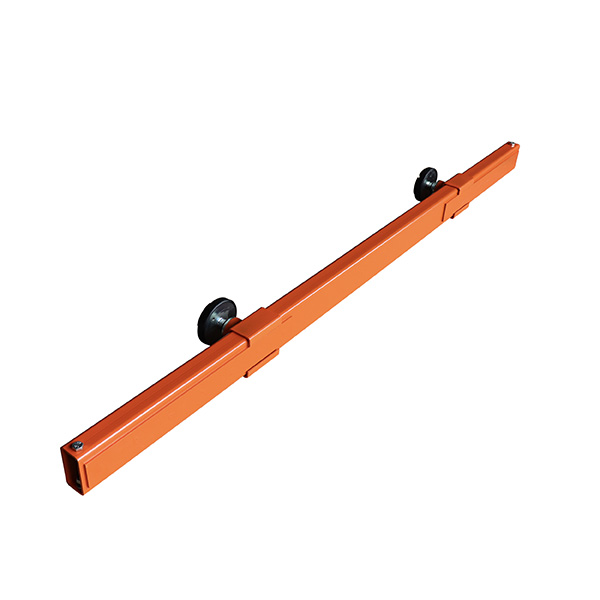

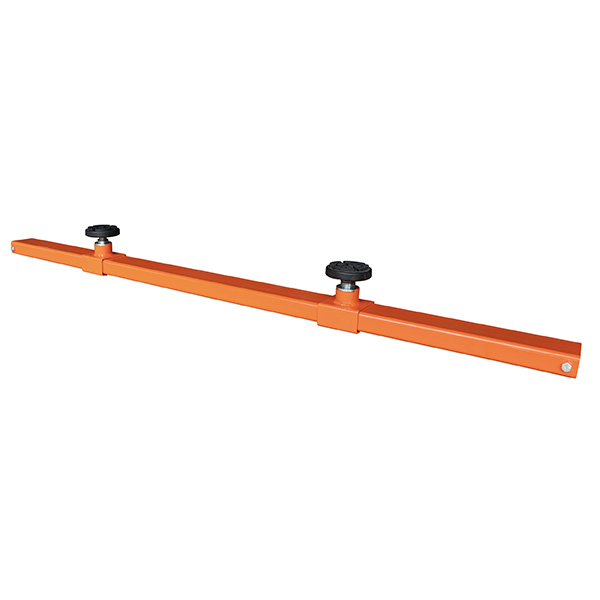

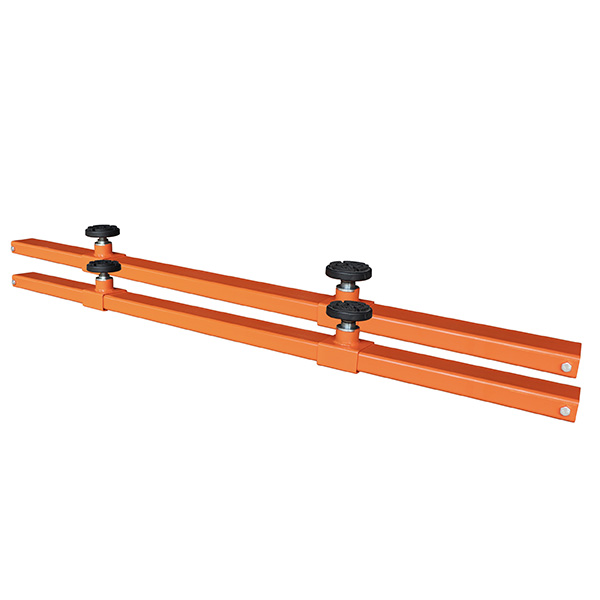

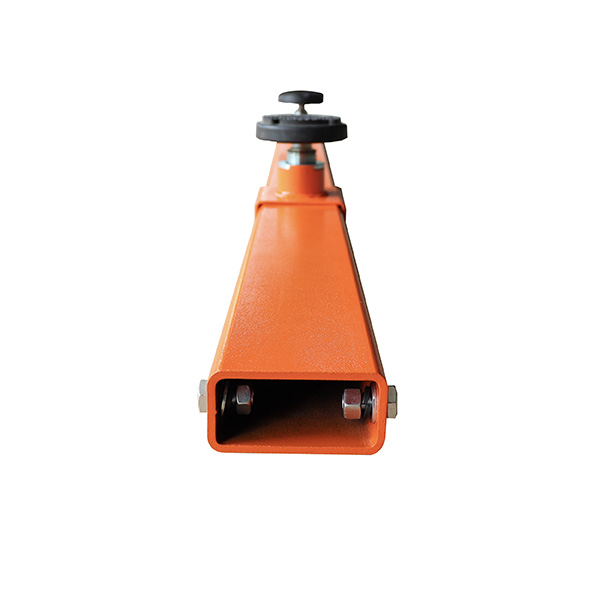

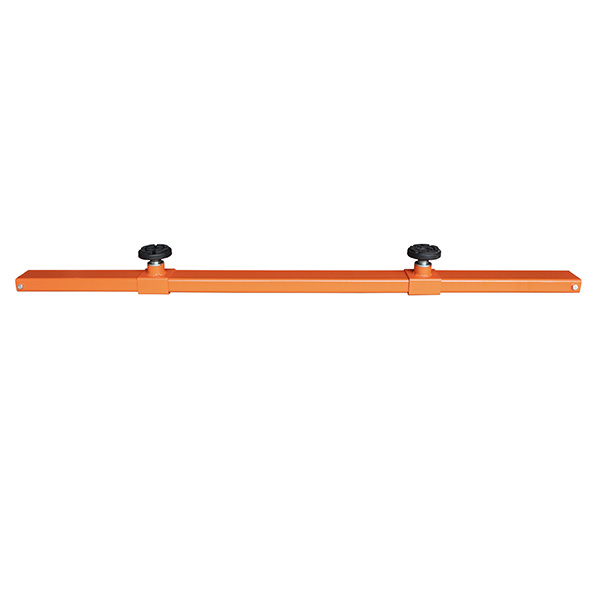

Support or levelling bar, lifting the car higher and more balanced.

  • 5,500Kg (12,000LBS.) lifting capacity.
  • Electro-air control and 24V low voltage operation system.
  • Reliable mechanical self-lock and air-drived safety lock release.
  • Max height limit switch to ensure the cylinders work within the stroke.
  • Skid proof diamond and low-profile platforms.
  • Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device.
  • Optional manual or pneumatic rolling jack.
Request A Quote
Model Lifting Capacity Lifting Time Overall Height Lifting Height Overall Length (Inc.Ramps) Overall Length (No Ramps) Overall Width Width Between Columns Gross Weight
ON-7440E 4,000kgs (9,000LBS) ≤60S 2120mm (83 7/16”) 1770mm (69 11/16”) 5512mm (217”) 4600mm (181 1/8”) 3350mm (131 7/8”) 3050mm (120 3/4”) 1050kgs (2,315LBS)
ON-7445E 4,500kgs (10,000LBS) ≤60S 2120mm (83 7/16”) 1770mm (69 11/16”) 5512mm (217”) 4600mm (181 1/8”) 3350mm (131 7/8”) 3050mm (120 3/4”) 1150kgs (2,535LBS)
ON-7455E 5,500kgs (12,000LBS) ≤60S 2120mm (83 7/16”) 1920mm (75 9/16”) 5812mm (228 13/16”) 4900mm (192 15/16”) 3350mm (131 7/8”) 3050mm (120 3/4”) 1300kgs (2,866LBS)

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.
  • Optional manual or pneumatic rolling jack.

Features and Benefits

  • The minimum ground height is 180mm(7 1/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
  • The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors.
  • There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be effective to ensure the safety of use.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

Get Instant Quote in 24 Hours

Whether you need your lifts to be mobile, high-cycle, automated, or particularly sized and configured, Eounice has the most customizable capabilities to craft the right lift for you with best accuracy and performance. Benefit from:

35,000m² Vehicle lift production workshop.

Skillful technical research more than 5 years.

ISO 9001 quality management system certificated and CE approved by European Union.

Over 50 automatic production line equipments.

Professional Vehicle Lift Solutions.
