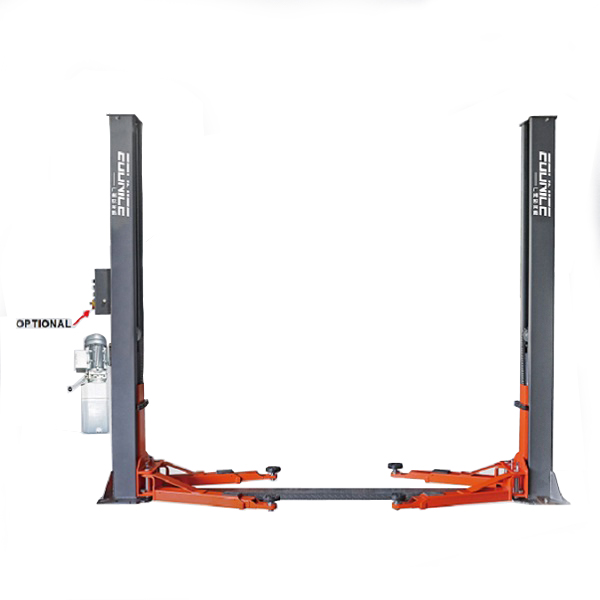

ON-7224E Base Plate Two Post Lift

4,200KG(9300LBS)/4,500KG(10,000LBS)

Electrical release and dual chain drive cylinders.

  • 4,200Kg (9,300LBS.) lifting capacity.
  • 1920mm (75 9/16”) lifting height suitable for various operators.

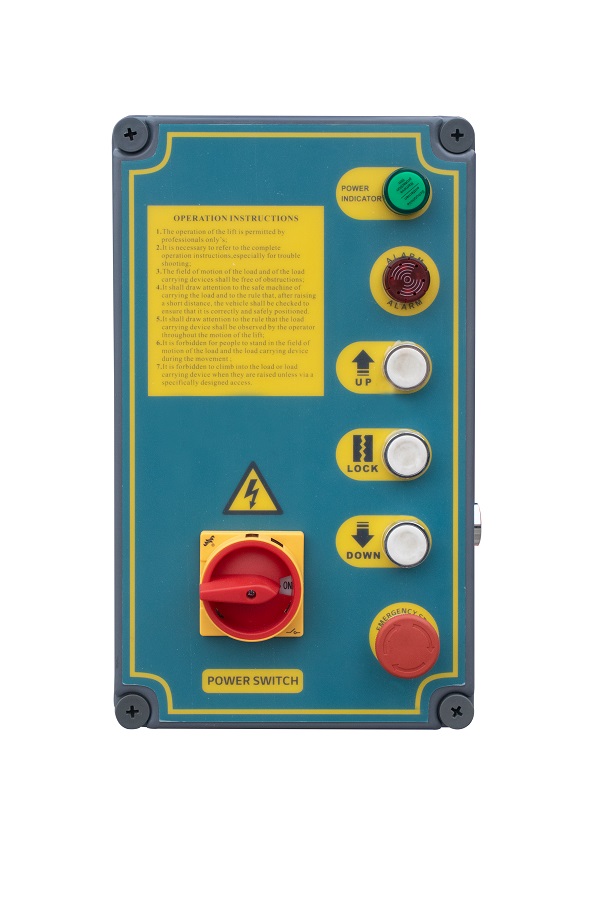

  • Electrical lock release with APS technical,24volt operation.
  • Durable chain drive cylinder in each column carries with anti-surge valves.

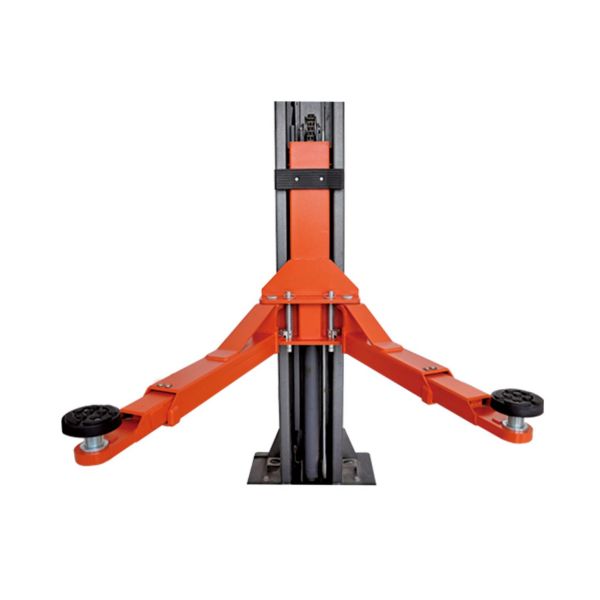

  • Standard with 4 two-stage lifting arms.

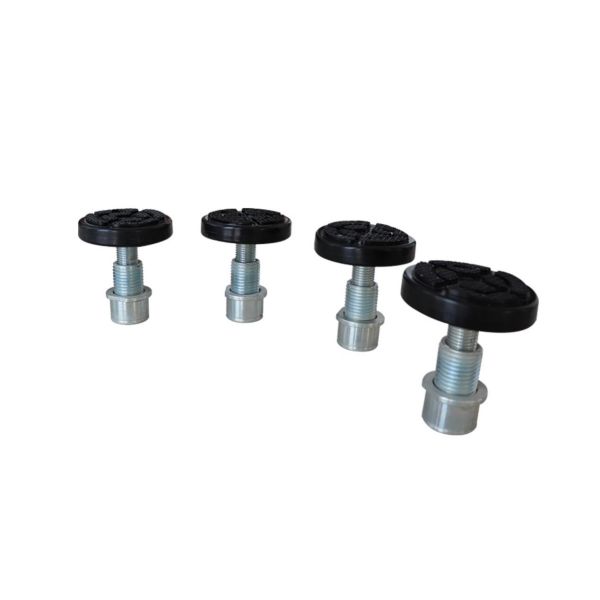

  • Screw-up rubber pads with min height 95mm (3 3/4”).
  • Standard with high limit switch.

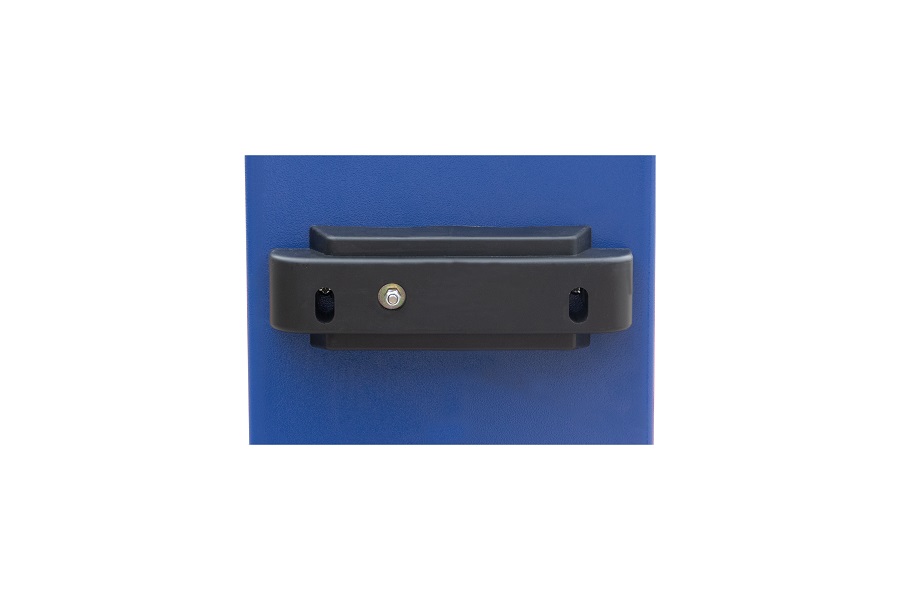

  • Standard with curtain inside column and foot guard.

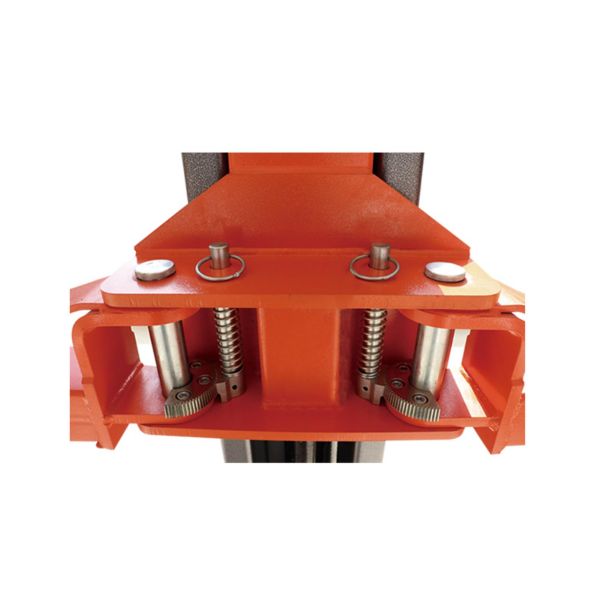

  • Automatic arms restraints.
  • Professional powder coating.
  • CE Certificated.

TECHNICAL DATA:

Model                                                         7224E
Lifting Capacity 4,200kgs (9,300LBS) 4,500kgs (10,000LBS)
Lifting Height 1920mm (75 9/16”) 1920mm (75 9/16”)
Lifting Time 55S 55S
Overall Height 2824mm (111 3/16”) 2824mm (111 3/16”)
Minimum Height 95mm   (3 3 /4”) 95mm   (3 3 /4”)
Overall Width 3410mm (134 1/4”) 3410mm (134 1/4”)
Width inside Columns 2850mm (112 1/4”) 2850mm (112 1/4”)
Motor Power 2.2KW (3HP) 2.2KW (3HP)
Shipping Weight 628kgs (1,385LBS) 658kgs (1,451LBS)

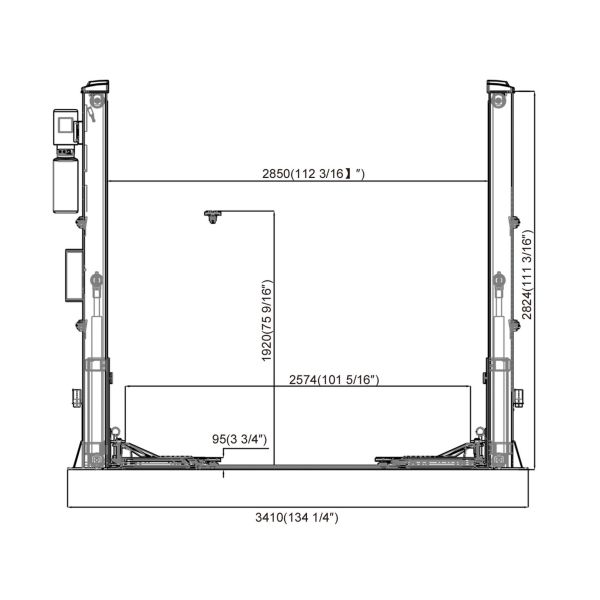

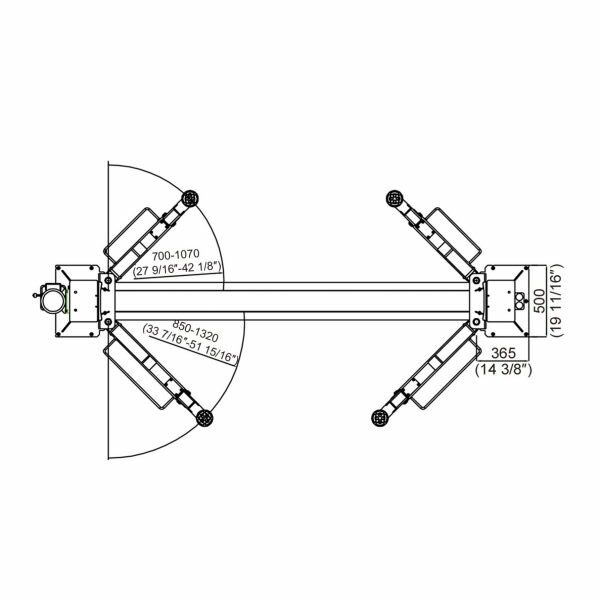

OVERALL DEMENSION:

7224E-Floorplate-2-Post-Lifts7224E-Floorplate-2-Post-Lifts

DETAILS:

Custom Options

  • OEM/ODM service can be offered
  • Lift color can be offered as customer request.

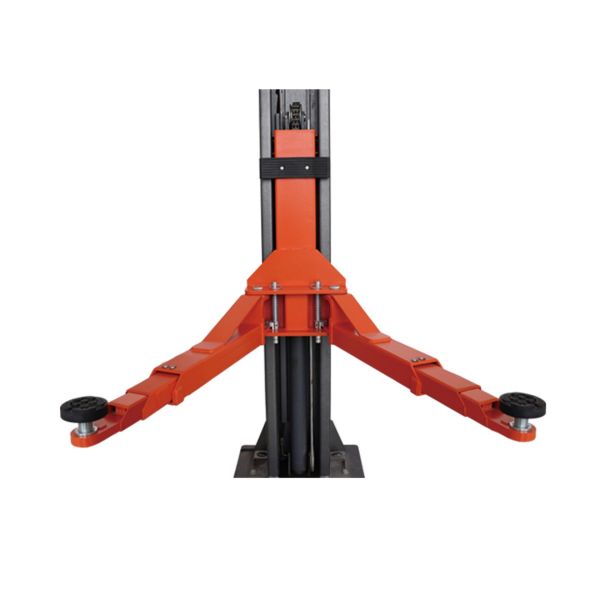

  • Optional three-stages lifting arms.

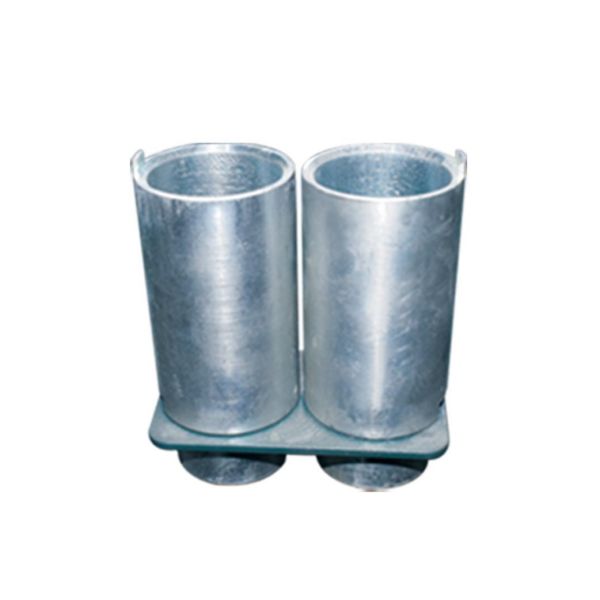

  • Optional 70mm(2 3/4”) and 100mm(3 15/16”) extension adapters.

Features and Benefits

  • The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4”), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
  • The cover plate is ultra-thin design, the height from the ground is only 33mm(1 5/16”), the vehicle is easier to pass;
  • The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8”) from the shaft end, which can effectively prevent the pulley from coming out.
  • The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  • Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
