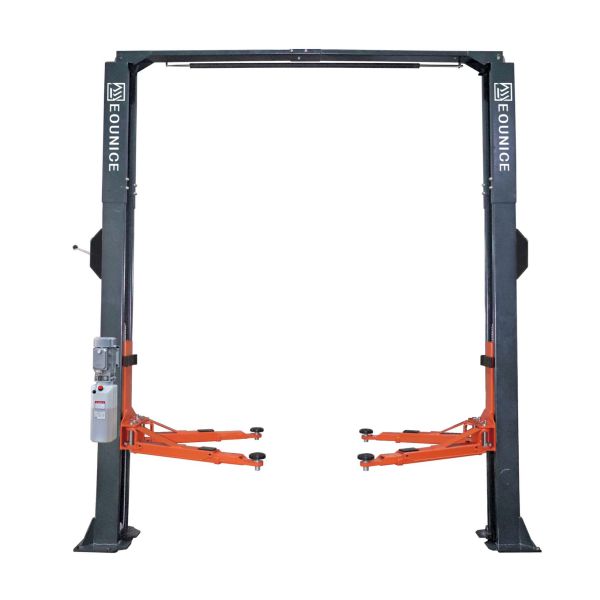

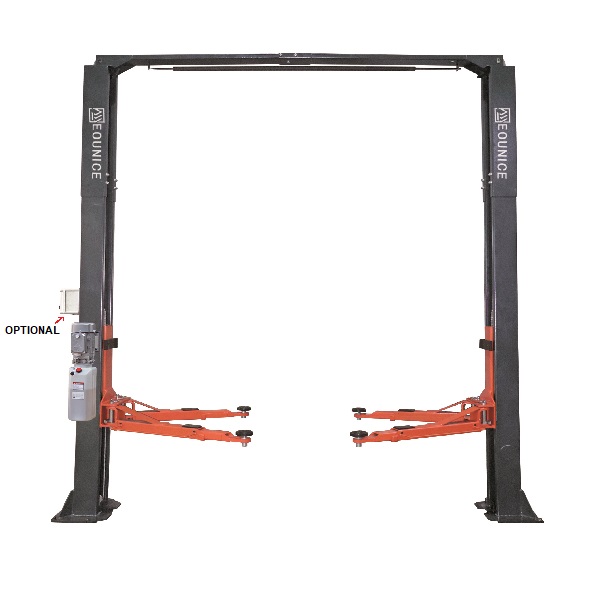

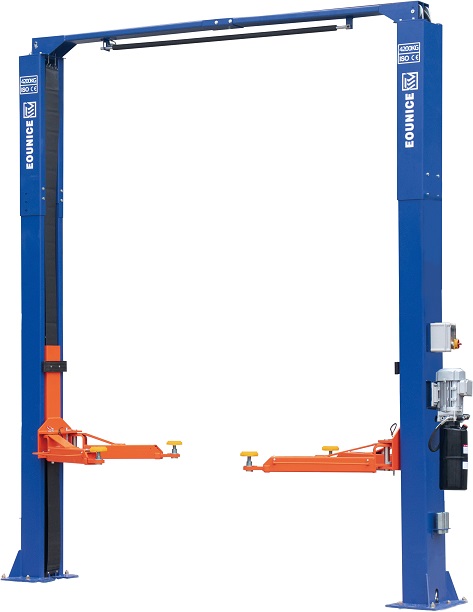

ON-7214 CLEAR FLOOR TWO POST LIFT
4,200KGS(9300LBS)/4,500KGS(10,000LBS)
Two side Manual release and dual chain drive cylinders.
- 4,200Kg (9,300LBS.) lifting capacity.
- 1920mm (75 9/16”) lifting height suitable for various operators.
- Two side manual release and 24volt operation.
- Durable chain drive cylinder in each column carries with anti-surge valves.

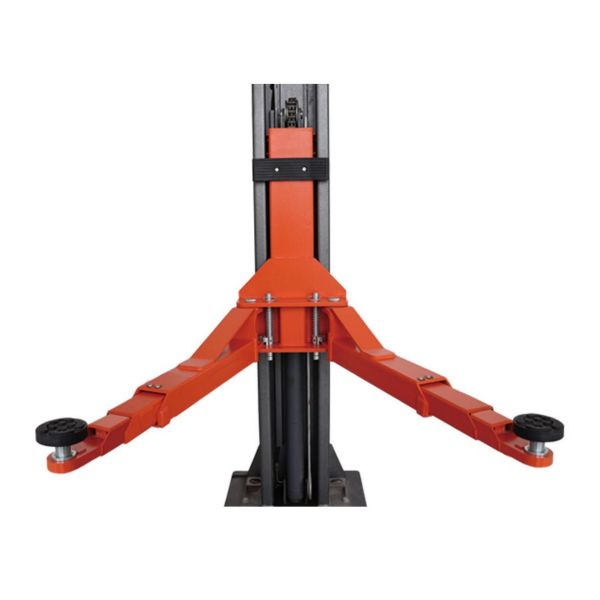

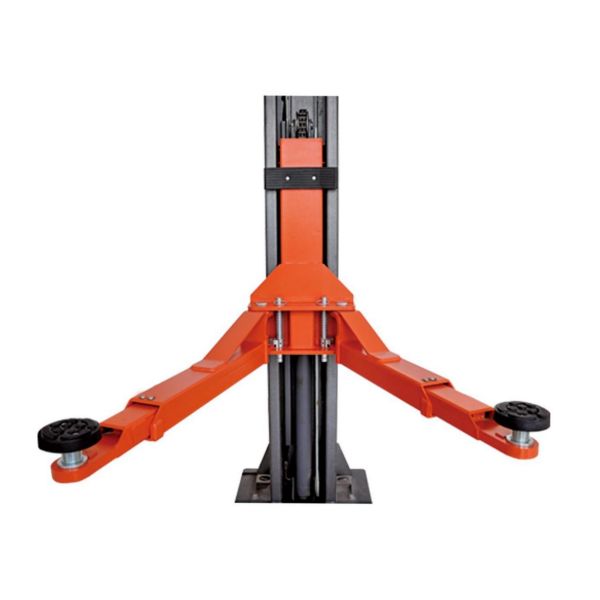

- Standard with 4 two-stage lifting arms.

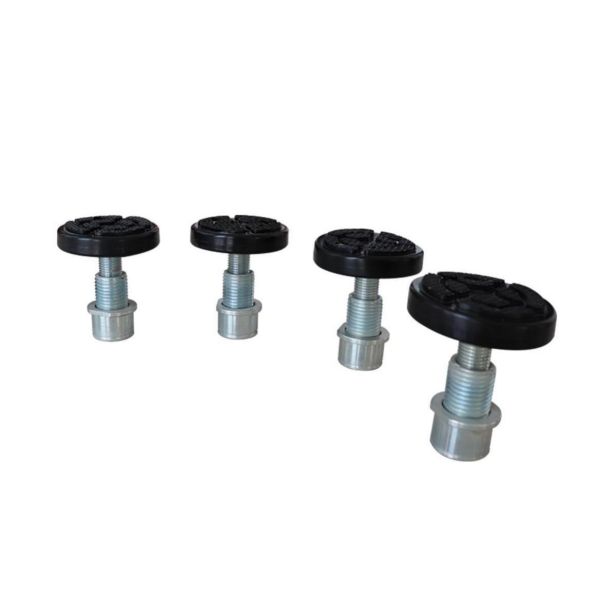

- Screw-up rubber pads with min height 95mm (3 3/4”).
- Standard with curtain inside column and foot guard.
- Standard with high limit switch.
- Overhead safety protection device.

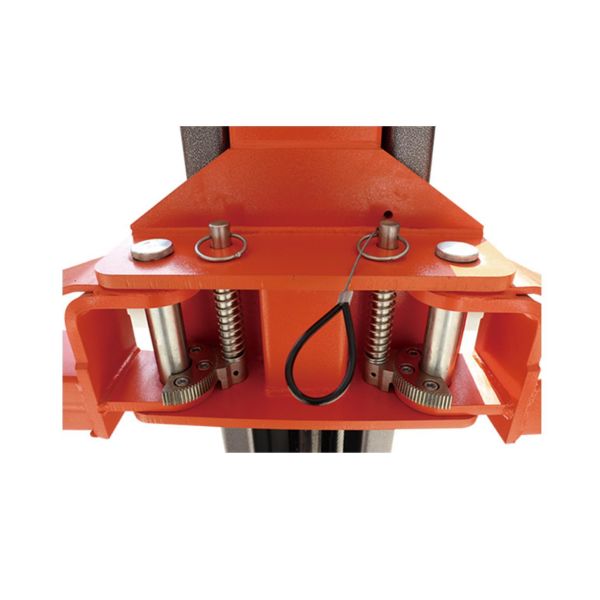

- Automatic arms restraints.
- Professional powder coating.
- CE Certicated.
TECHNICAL DATA:
| Model | 7214 | |
| Lifting Capacity | 4,200kgs (9,300LBS) | 4,500kgs (10,000LBS) |
| Lifting Time | 55S | 55S |
| Lifting Height | 1920mm (75 9/16”) | 1920mm (75 9/16”) |
| Minimum Height | 95mm (3 3 /4”) | 95mm (3 3 /4”) |
| Overall Height | 3835mm (151”) | 3835mm (151”) |
| Width inside Columns | 2850mm (112 1/4”) | 2850mm (112 1/4”) |
| Overall Width | 3410mm (134 1/4”) | 3410mm (134 1/4”) |
| Shipping Weight | 652kgs (1,437LBS) | 682kgs (1,550LBS) |
| Motor Power | 2.2KW (3HP) | 2.2KW (3HP) |

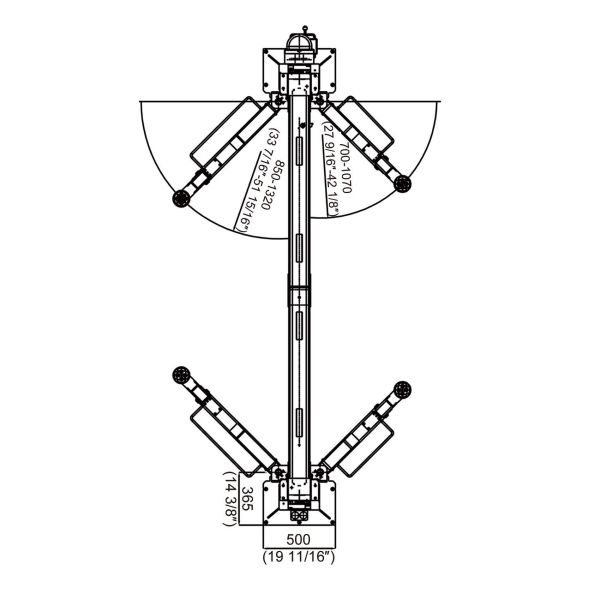

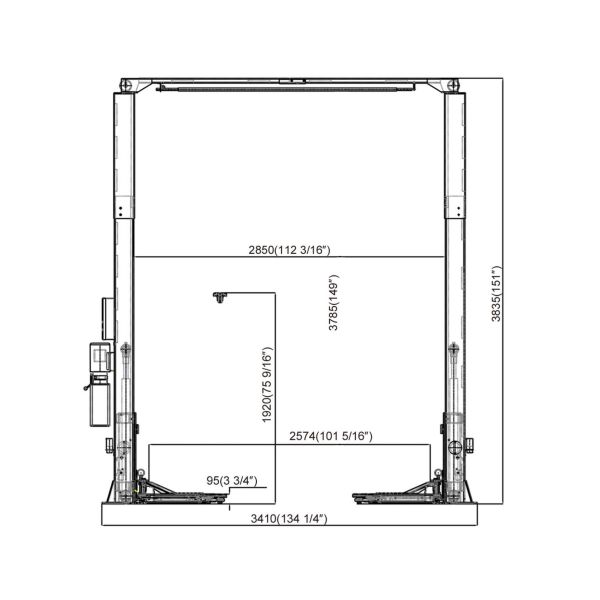

OVERALL DEMESION:
DETAILS:
Application Video
Features and Benefits

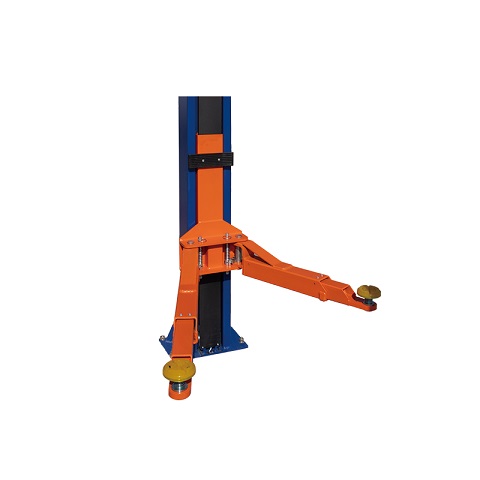

- The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4”), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
- The maximum height is 3835mm(151”), and the effective height is 3700mm(145 11/16”), which is more suitable for the lifting of vehicles with high roof.
- The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8”) from the shaft end, which can effectively prevent the pulley from coming out.
- The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
- Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
